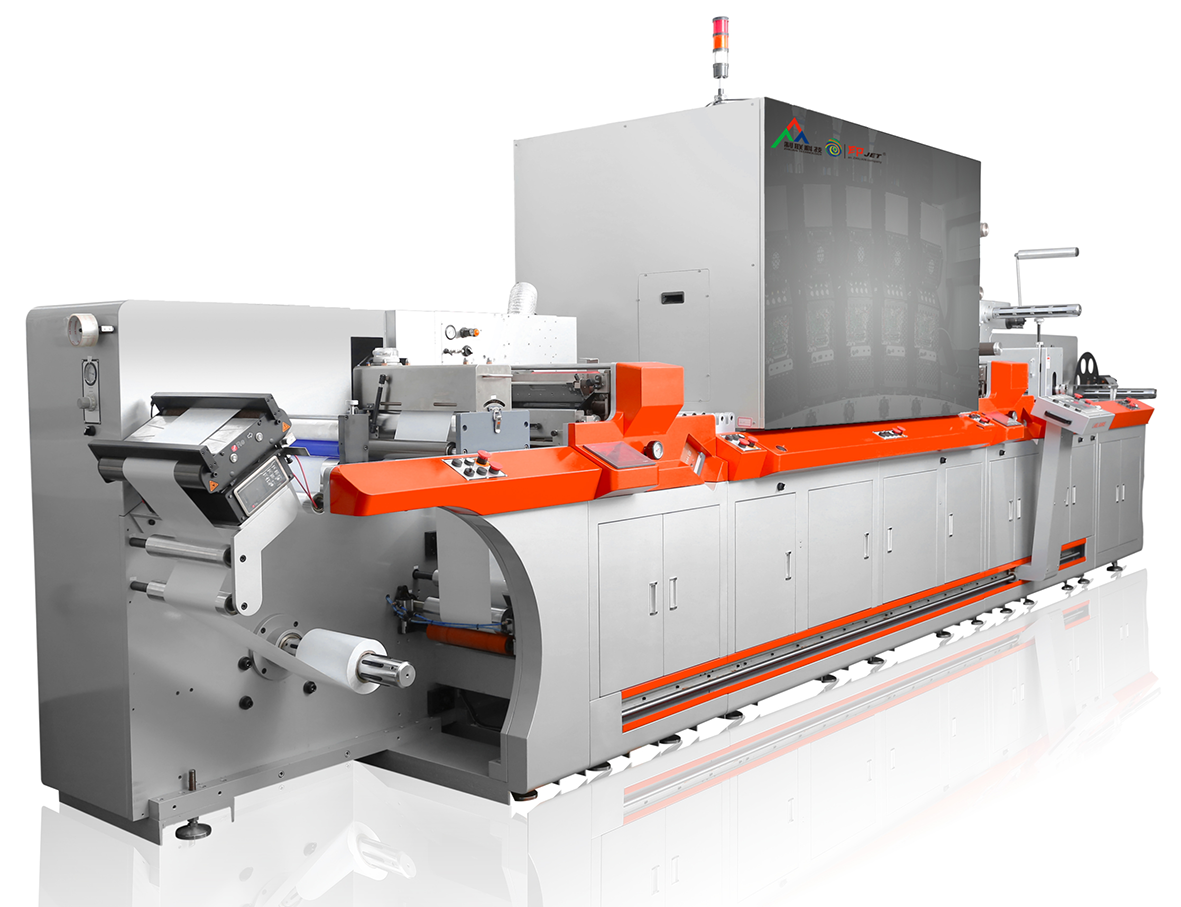

DP900 digital color label machine is used in the printing of wine label, daily chemical label, food packaging label, and also in the printing of personalized variable content. The system integrates corona, dust removal, flexo printing, cold stamping, round knife die cutting, film covering, strip, waste collection and other functional modules, to provide customers with one-stop solutions.
Technical Specification
Printing Resolution
600DPI/1200DPI adjustable
Printhead Type
Industrial DOD piezoelectric nozzle
Printing Width
54mm extensible
Printing Speed
40-60m/min
Transport Width
330mm
Software
Support text, number, Chinese and English, bar code, two-dimensional code, picture, etc.
Printing Color
CMYK+W
Suitable Printing Material
Stickers copper paper, synthetic paper, PE, PP, POPP, PET, HDPE, OPP, PVC, etc.
Transport Precision
±0.5mm
Ink Type
Imported UV inks
Curing Mode
Curing by LED UV light with water cooling
Substrate Thickness
0.12-0.6mm
Mechanical Platform
Full servo system
Optional Functions
Corona machine, dust removal, film, cold ironing, glazing, die-cutting, cutting.
Power
380V 80A 50HZ 30KW
Equipment Size
(L)7800*(W)1200*(H)2600 mm
|
